ASME ‘U Part’, 80 psi manways are designed, constructed & certified as per ASME SEC VIII Div-1, for use in Non-Lethal pressure vessels.

  •  We manufacture ASME ‘U Part’, 80 psi manways which are designed, constructed & certified as per ASME SEC VIII Div-1, for use in Non-Lethal pressure vessels.

  • ​Facilitated by a cam lever the design caters to a quick and frictionless opening requirement. The initial torque set up on the bolts helps open the cam lever seamlessly without resorting to the conventional method of using a wrench.

  • The Aluminum alloy cover is rust free and is designed & manufactured as a lightweight component compared to steel.

  • It is equipped to hold the vessel pressure, without the worry of corrosion or rust formation on cover due to cam rubbing on cover.

  • It is the optimum solution for quick operation for vessels where manway is required in all positions to suit your custom need.

 " U PART "  80 PSI MANWAYS



TECHNICAL SPECIFICATIONS

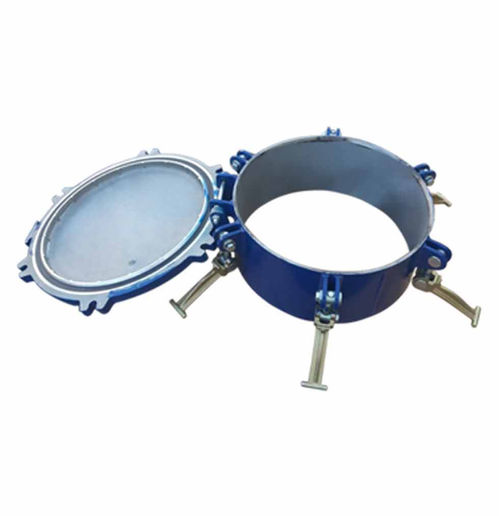

Manway part number 04TKX583A is a 20” cam-latch manhole equipped with a quick opening cast aluminium cover which has six number of cam lever lift handles.  Six quick-operating aluminium cam locks attached to swing bolts are secured to the neck utilizing a double lug design which facilitates normal hexagonal bolt to be provided with help of a bush. The double lug design facilitates the easy replacement of fasteners in future.

What are manways used for?

Manways are also know as manholes, handholes, access ports, and hatches, however their function is the same. Regular maintenance for any vessel is a mandatory aspect of any installation, Manways provide controlled access to the interior of the vessel for the purpose of periodic cleaning, inspection, and servicing. .

What is an ASME manway?

ASME code manways are used to provide access to ASME code pressure vessels. They are pressure rated and built-in accordance to ASME BPVC Section VIII standards. We manufacture ASME ‘U Part’, 80 psi manways which are designed, constructed & certified for use in Non-Lethal pressure vessels

Do you comply with ASME standards for installations?

We advise on installation procedures and best practice in order to ensure compliance with ASME standards.

Additional customization and spares are provided if required.
